Smartwatch Sensing

Smartwatch Connection Tutorial

Connect non-Apple smartwatches (e.g., Moto 360, LG Watch Sport, Huawei Watch, etc.) to an Android smartphone, and further connect the smartwatch to a computer via the ADB tool (Android Debug Bridge) to achieve the following two functions:

  1. Transfer data from the smartwatch to the computer (via ADB)
  2. Install applications onto the smartwatch from the computer (via Android Studio)

Prerequisites

  1. A non-Apple smartwatch
  2. An Android smartphone with the Wear OS by Google app installed (searchable in the app store or web browser)
  3. The ADB tool, located in the ADB/ folder:
  4. Windows: ADB/Win
  5. macOS/Linux: ADB/Mac

Connecting the Smartwatch to the Smartphone

Note: The following tutorial uses pairing a Moto 360 smartwatch with a Xiaomi MI 4LTE smartphone as an example. In general, a smartwatch can be paired with at most one smartphone at a time. To pair it with another smartphone, the existing connection must first be terminated.

  1. Smartwatch: If the smartwatch was previously paired with another smartphone, disconnect it and perform a factory reset. Navigate to Settings → System → Disconnect & reset. After rebooting, the watch enters the phone-pairing screen. If no prior pairing exists, the watch enters the phone-pairing screen directly upon power-on:

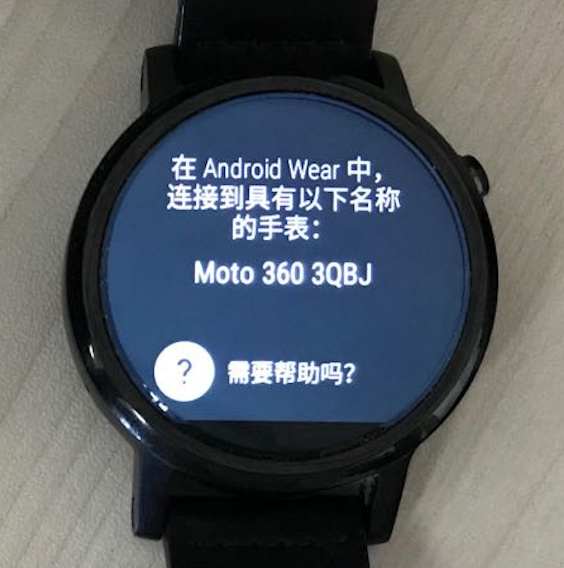

Fig. Smartwatch–smartphone pairing
  1. Smartphone: Enable Wi-Fi or mobile data to ensure internet connectivity; enable Bluetooth; launch the Wear OS app; tap the top-left menu icon and select Add new watch; choose the target watch from the displayed list and confirm pairing, as shown below. If pairing fails, try the following remedies: restart the Wear OS app; or go to Settings → Bluetooth → Paired devices, locate the watch if previously paired, and unpair it:

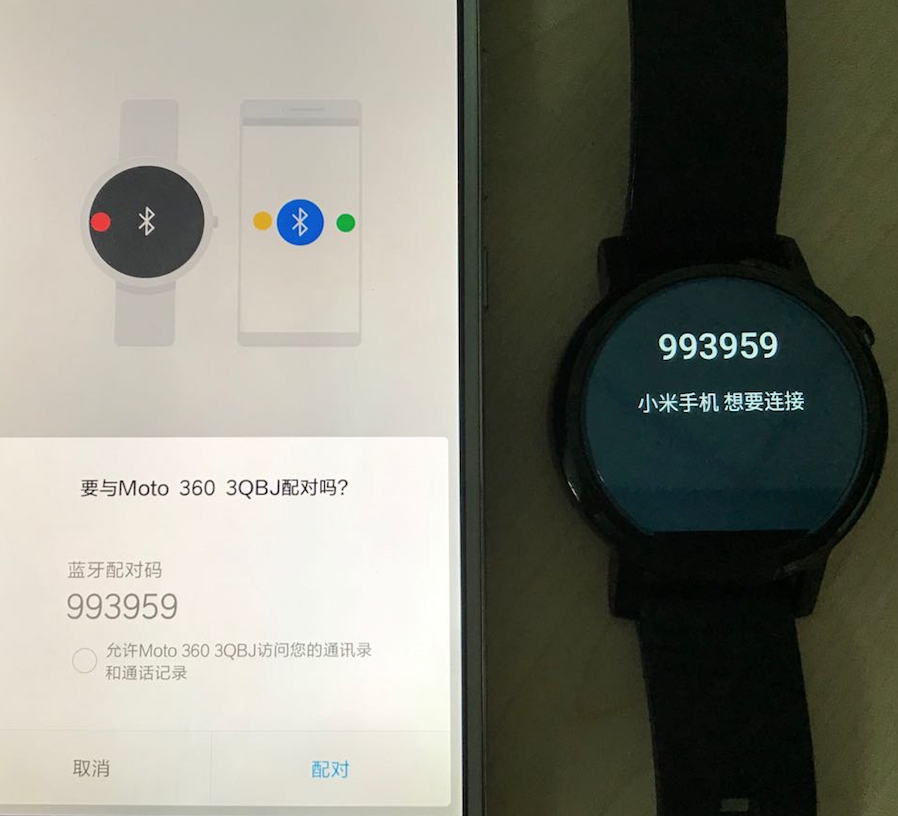

Fig. Smartphone pairing interface

  1. Smartwatch: Navigate to Settings → System → About, then tap Build number seven times consecutively. This unlocks Developer options under Settings. Enter Developer options, and enable both ADB debugging and Debug over Bluetooth.

  2. Smartphone: Launch the Wear OS app, scroll down and tap Advanced settings, then enable Debug over Bluetooth. The status should now read Host: Not connected; Target: Connected, as shown in Fig. 3. If Target shows Not connected, restart the Wear OS app and recheck:

Fig. Successful smartphone connection interface

Connecting the Smartwatch to the Computer

  1. Smartphone: Connect the smartphone to the computer using a USB cable.

  2. Computer: Open a command-line terminal (Windows Command Prompt/PowerShell or macOS/Linux Terminal), and execute:

  3. On Windows: .\connect.ps1
  4. On macOS/Linux: ./connect

At this point, the Host status in the smartphone’s Advanced settings should change to Connected. If any of the following errors occur, apply the corresponding resolution:

2.1 If `error: more than one device/emulator` appears, run `./adb kill-server` to terminate all existing ADB connections.

2.2 If `device not found` appears, on the smartphone navigate to `Settings → Developer options → Select USB configuration → Charging only`, then grant USB debugging authorization when prompted. Afterwards, re-execute `.\connect.ps1` (Windows) or `./connect` (macOS/Linux).

2.3 If `This adb server's $ADB_VENDOR_KEYS is not set`，则找到(Windows)`C：Users/$Name/.android` (Windows) or `~/.android` (macOS/Linux) directory is referenced, delete the `adbkey.pub` and `adbkey` files inside that directory, then re-run `.\connect.ps1` (Windows) or `./connect` (macOS/Linux).

  1. Smartwatch: Upon successful host connection, a prompt “Allow USB debugging?” will appear on the watch screen—select Always allow.

  2. Computer: Android Studio will now detect the smartwatch and support application installation.

  3. Smartwatch: Navigate to Settings → Apps → $(installed app) → Permissions, and enable required permissions for the installed application.

Inertial Sensor Data Acquisition

We developed an Android application named IMU Detector in Android Studio to record accelerometer and gyroscope sensor data from the smartwatch over a specified duration.

The usage procedure on the smartwatch is as follows:

  1. Launch the IMU Detector app on the smartwatch. The initial screen is red.

  2. Tap the watch face once—the screen turns white, indicating readiness for motion.

  3. Tap the watch face again—the screen reverts to red and displays the total data acquisition duration.

  4. Follow the instructions in the Smartwatch Connection Tutorial to connect the smartwatch to the computer via the smartphone.

  5. On the computer, open a command-line terminal and execute:

  6. On Windows: .\pull.ps1 <filename>
  7. On macOS/Linux: ./pull.sh <filename>

This transfers the recorded data file from the watch to the computer. Example commands:

(Windows)

.\pull.ps1 move

(macOS/Linux)

./pull.sh move

The result is a file named move.data created in the current working directory.

Data Format

The acquired data file has the following format:

There are \(N\) rows and 7 columns. Each row corresponds to a single timestamped measurement. Column meanings, left to right, are as follows:

Timestamp (unit: \(ms\)), X-axis acceleration (unit: \(m/s^2\)), Y-axis acceleration (unit: \(m/s^2\)), Z-axis acceleration (unit: \(m/s^2\)), X-axis angular velocity (unit: \(rad/s\)), Y-axis angular velocity (unit: \(rad/s\)), Z-axis angular velocity (unit: \(rad/s\)).

Data Processing and Visualization

After acquiring inertial sensor data from the smartwatch using the above method, process and visualize the data using MATLAB.

The code folder contains two files: main.m and move.data.
- main.m: MATLAB source script for processing smartwatch sensor data.
- move.data: Raw inertial sensor data file acquired from the smartwatch.

First, load the contents of move.data into a matrix using MATLAB’s load function:

A = load('move.data');

Matrix \(A\) contains 114 rows and 7 columns. Its content can be inspected either via a text editor or MATLAB’s variable explorer. Each row represents one timestamped measurement; column semantics are summarized in the table below (first two rows of move.data shown as examples):

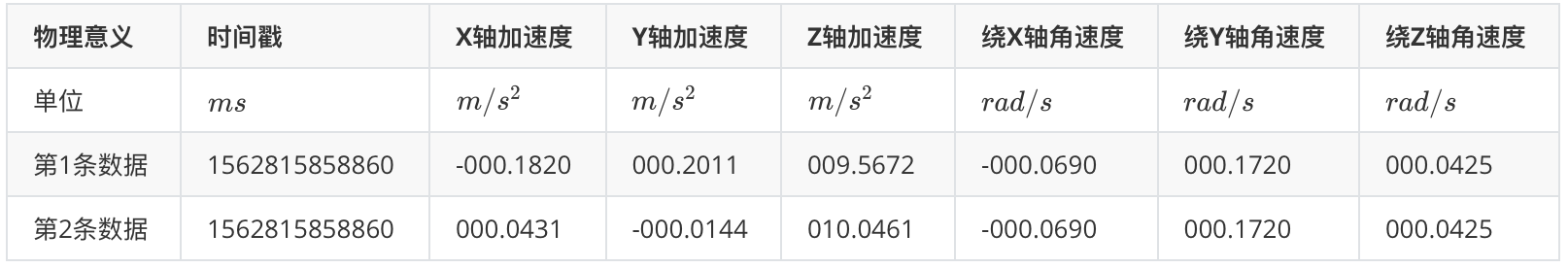

Fig. Meaning of data file columns

In the table above, the timestamp denotes the total number of milliseconds elapsed since 00:00 on January 1, 1970 (Unix epoch), according to the smartwatch’s system clock. The smartwatch’s three orthogonal axes are illustrated below:

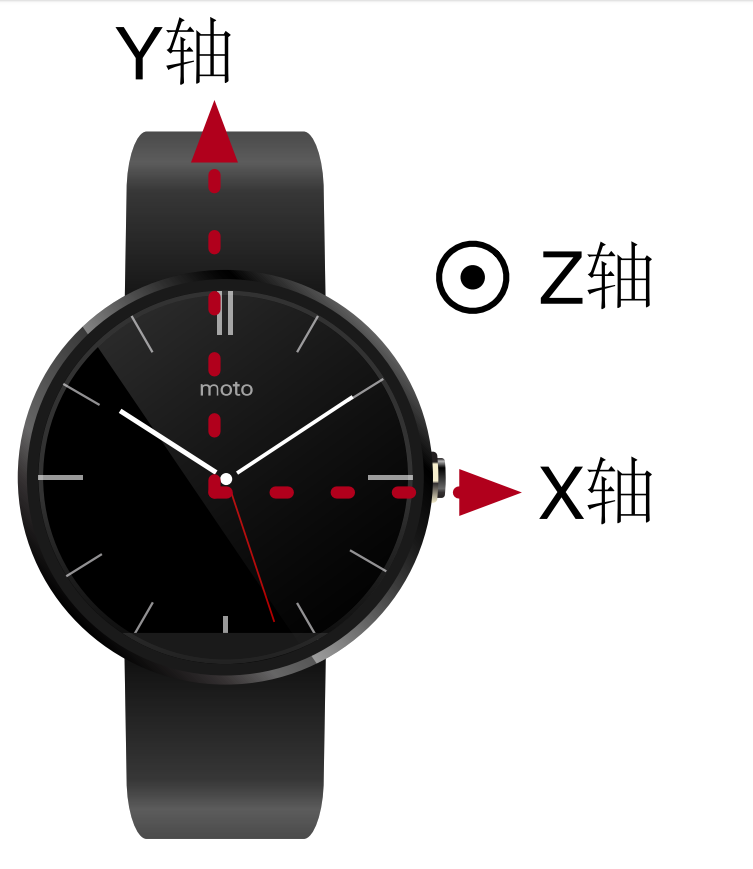

Fig. Smartwatch 3-axis coordinate system

To simplify subsequent processing, normalize timestamps so the first entry becomes zero, and all others represent relative offsets:

A(:, 1) = A(:, 1) - A(1, 1);

The sampling rate of the accelerometer and gyroscope used in this smartwatch is \(50Hz\). This value may be obtained from the device’s technical documentation or by computing the average interval between successive timestamps. Define the following variables:

samplingRate = 50;
samplingTime = 1000 / samplingRate;

As evident from both the table and the raw move.data file, some timestamps are identical, and inter-sample intervals are not strictly uniform. This behavior stems from the underlying principle of inertial measurement unit (IMU) data acquisition on Android.

In \(Android\) application development, accelerometer and gyroscope data are acquired by registering listeners for the "data changed" event. For instance, the accelerometer triggers this event whenever its newly measured value differs from the previous one; the event payload can then be used to collect or process data. The time interval between consecutive accelerometer measurements is determined by the sensor’s intrinsic sampling rate—its reciprocal. In theory, identical successive readings would not trigger the event, resulting in missing samples—but due to inherent sensor noise, such exact matches are rare. Additional timing discrepancies arise from software execution latency and minor inaccuracies in the sensor’s nominal sampling rate. Identical timestamps occur when both the accelerometer and gyroscope simultaneously trigger their respective "data changed" events—hence two entries share the same timestamp.

Since timestamps are non-uniform, interpolation is required to resample the data onto a uniform time grid—essential for computing velocity and displacement from acceleration. We apply smoothing interpolation as follows:

[~, I] = unique(A(:, 1), 'first');
A = A(I, :);

temA = [];
temA(:, 1) = (A(1, 1) : samplingTime : A(end, 1))';
for i = 2 : size(A, 2)
    temA(:, i) = spline(A(:, 1), A(:, i), temA(:, 1));
end

The unique function extracts all distinct values from a vector (i.e., removes duplicates). The spline function performs cubic spline interpolation: spline(x,y,xx) fits a cubic spline to points (x,y) and returns interpolated values at abscissae xx.

This tutorial focuses on 2D motion visualization. The move.data file was acquired while moving the watch within the plane of its display. Therefore, the Z-axis acceleration and full 3-axis gyroscope data are irrelevant here; only the X- and Y-axis accelerations are needed:

T = temA(:, 1);
A = temA(:, 2 : 3);

With uniformly sampled acceleration data, we now compute velocity and displacement. The adopted motion model is piecewise constant acceleration, i.e., acceleration remains fixed at its sampled value throughout each sampling interval. Using this model, velocity and displacement are computed as:

dt = samplingTime / 1000;
dV = A * dt;
V = cumsum(dV);
dD = V * dt + A * dt ^ 2 / 2;
D = cumsum(dD);

The cumsum function computes cumulative sums along the first dimension (default) of a vector or matrix, returning all intermediate partial sums.

Next, plot time-series curves for acceleration, velocity, and displacement across both axes. Use subplot to arrange all six plots in a 3×2 grid:

subplot(3, 2, 1);
plot(T, A(:, 1));
title('X-axis Acceleration');

subplot(3, 2, 2);
plot(T, A(:, 2));
title('Y-axis Acceleration');

subplot(3, 2, 3);
plot(T, V(:, 1));
title('X-axis Velocity');

subplot(3, 2, 4);
plot(T, V(:, 2));
title('Y-axis Velocity');

subplot(3, 2, 5);
plot(T, D(:, 1));
title('X-axis Displacement');

subplot(3, 2, 6);
plot(T, D(:, 2));
title('Y-axis Displacement');

The resulting plot is shown below:

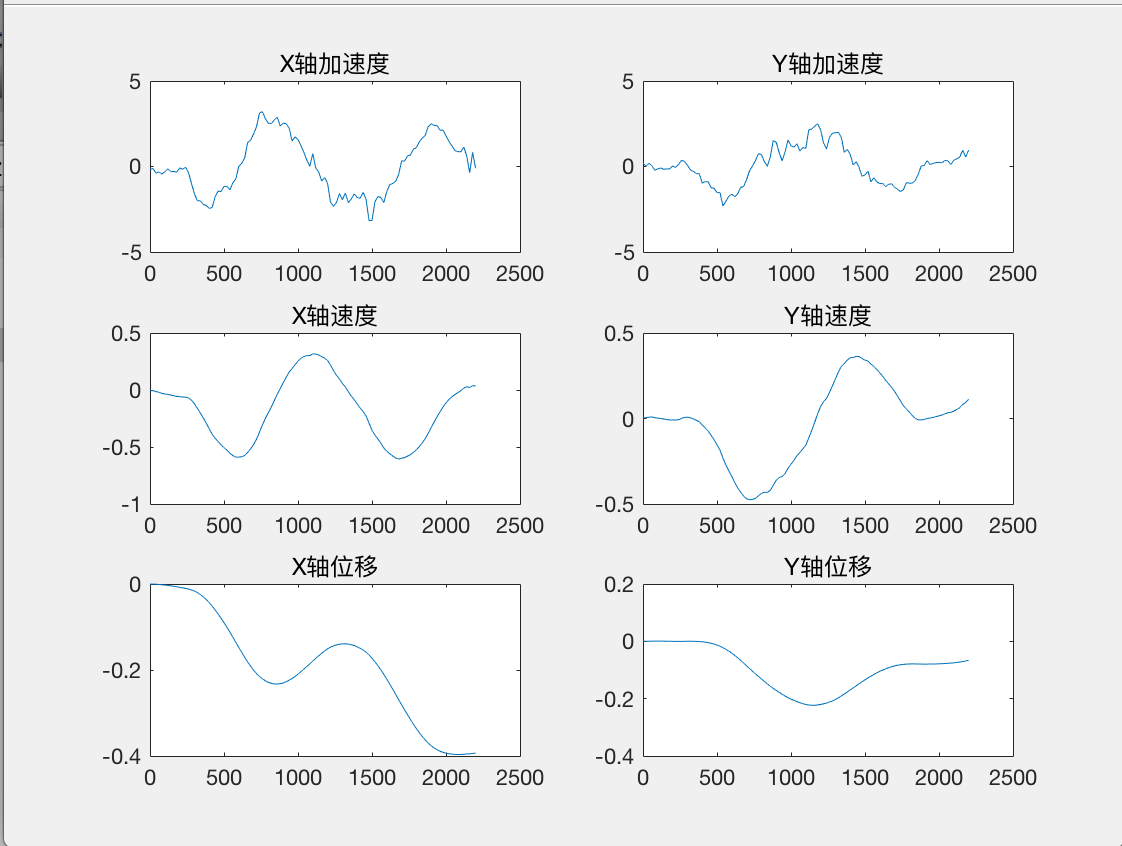

Fig. Acceleration, velocity, and displacement curves for X- and Y-axes

To animate the dynamic motion trajectory, use MATLAB’s pause function to sequentially plot points:

w = max(max(abs(D))) + 0.05;
figure(2);
axis([-w, w, -w, w]);

for i = 1 : size(D, 1)
    hold on;
    plot(D(i, 1), D(i, 2), 'ro');
    pause(dt);
end

The axis function sets the display range for the \(X\)- and \(Y\)-axes. The resulting motion trace is shown below:

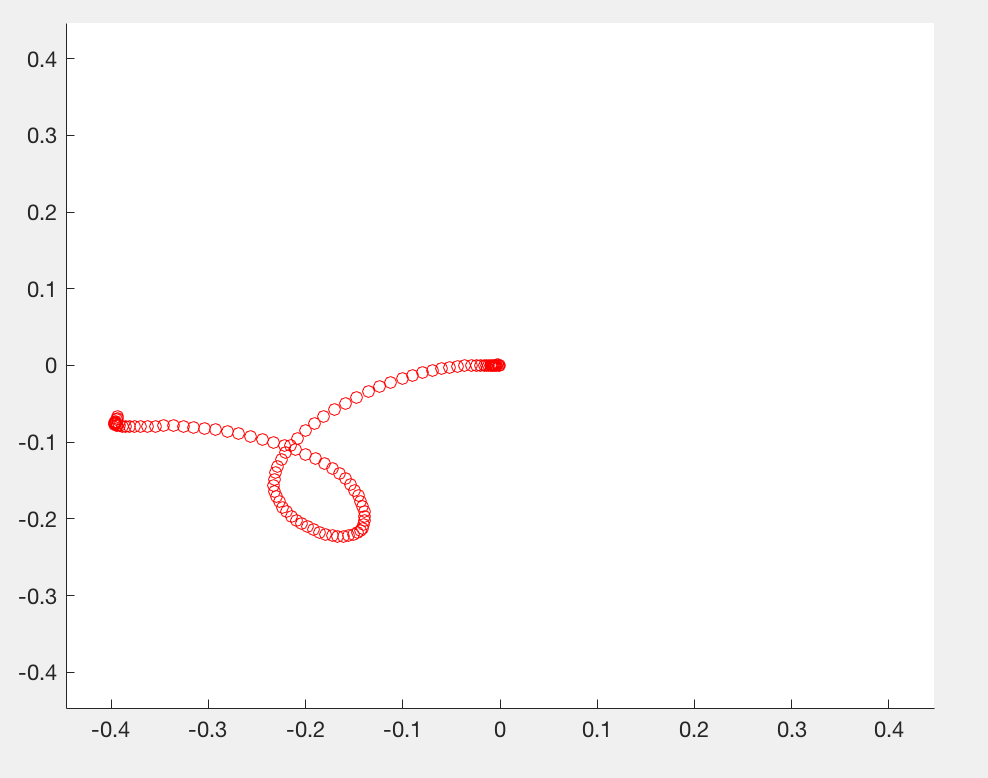

Fig. Smartwatch motion trajectory

Discussion Questions

  1. This tutorial demonstrates only 2D motion. How can it be extended to full 3D? Gyroscope data would be required to estimate orientation changes. Note: Accelerometer measurements are expressed in the watch’s local sensor frame, whereas the reconstructed trajectory must be represented in the world (global) coordinate frame—requiring coordinate transformation.
  2. Another simplification in the 2D case is neglecting gravity (which acts entirely along the \(Z\)-axis and is excluded here). In 3D, how can gravity be separated from true motion-induced acceleration? Note: Due to arbitrary orientation changes between the watch frame and world frame, gravity’s projection onto the watch’s axes is time-varying—not constant.
  3. As noted earlier, both accelerometer and gyroscope measurements contain inherent errors. How significantly do these errors affect trajectory reconstruction accuracy? What effective methods exist to mitigate them?
  4. Is the piecewise constant acceleration model used here physically justified? Are there more accurate motion models better suited to real-world dynamics?
  5. Gesture recognition in this tutorial proceeds by first reconstructing the trajectory, then classifying gestures based on it. When trajectory reconstruction is inaccurate, how can robust gesture classification still be achieved?

References

  1. Zhipeng Song, Zhichao Cao, Zhenjiang Li, Jiliang Wang, Yunhao Liu. Inertial Motion Tracking on Mobile and Wearable Devices: Recent Advancements and Challenges. Tsinghua Science and Technology, 2021, 26(5): 692–705.
